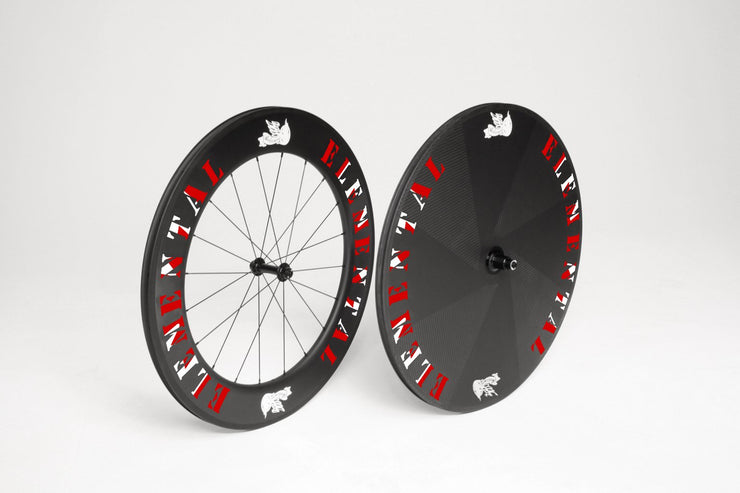

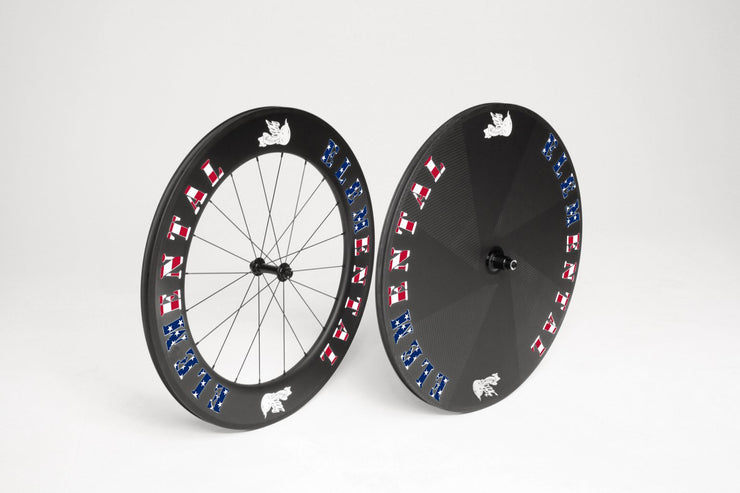

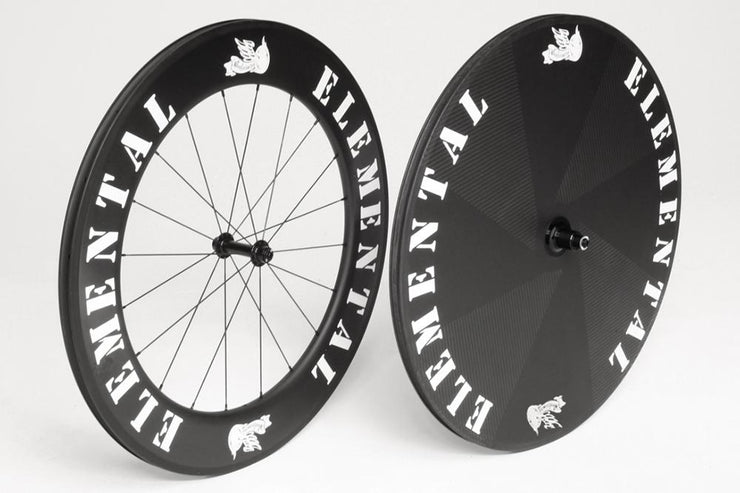

ELEMENTAL 88mm-Disc wheelset
The Elemental 88-Disc wheels offer you an exceptional cycling and triathlon racing experience. Our 88mm front rim offers outstanding stability at speed for a rim of that depth due to the toroidal profile, no matter what the bike course, or nature throws at you. The rear disc is simply unparalleled for race day performance.
Our carbon rims not only allow us to build a very stiff and precise wheel, but due to the unique properties of carbon fiber, they also absorb a large amount of road vibration. This means you become less fatigued while riding.
Our lifetime warranty, dedication to customer service, and superior build quality means your wheels will give you years of outstanding performance.
Designed to be used with tires ranging from 23-28mm.
Alternative Wheel Options
- Interested in a custom Elemental Superlight build?
- Front or rear only?
- Rims only?
We are always asked about hub selection. We hope the below summary will act as a guide for you. The key differences between the hubs we offer are around weight, flange width, and bearing width. But the key thing is not the technical specification but rather what type of riding they are best suited for - and of course the cost.
Road / Crit racing
NEED HELP CHOOSING A BIKE WHEEL?
You can either contact Peter directly or if you haven't already, try our online Wheel Finder tool.
(Rim brake models shown - DISC brake versions also available - see hub options above)
Aerodynamic Bike Wheels
|Width at brake track||23mm|
|Width at widest point||23mm|
|Weight - tubular||1120g|
|Weight - clincher / Tubeless ready||1250g|
|Brake surface||Ceramic inlay|
|Rider weight||110kgs / 240lbs|
|Max psi - 25mm tire||120|
Real world test - How much faster is a disc wheel?
At Wheelscience we use best of breed technology to delivery you outstanding performance. No compromise, ever.
We only us Torayca carbon fibre. Toray Industries of Japan is without question the global leader in carbon materials. We use two types of their fibre.
T700 carbon fibre from TORAYCA® is considered the gold standard in industrial fibre. While more recent advances in carbon have led to the development of T800 and T1000 fibres, both of these are actually too rigid to be used alone. Our Everest rims use a blend of T700 and T800 as do our Elemental SL wheels, while the Elemental and Vortex rims are 100% T700.
Our new ultra carbon rims take weight saving and strength to an entirely new level. By producing rims that effectively come out of the molds ready to ride, that require no finishing, not clear coating we can take over 100 grams off the rims.
Road Rim configurations
Our Elemental, Elemental SL and Everest wheels are available as Clincher, Tubeless-ready clincher and Tubular. For tire pressure recommendations please see our FAQ page.
MTB rim graphene infusion
We infuse our MTB rim resin with graphene particles to remove the microscopic air bubbles that form as part of the production process. The removal of these increases the impact resistance of the rims by almost 20% while adding only 6 grams in weight. An excellent trade off.
Interesting rim facts
We conduct various tests on our rims as you would expect. Some of the more interesting outcomes are the following:
Our spoke holes are tested to over 350 kilogram force (over 800lbs). This means we use a mechanical set up to apply that much pull force to a spoke set up in a rim section. That is 200-300% of the load they will be exposed to in day-to-day use.
We crush test our rims (unspoked) to 600kgs without failure, that is almost 1500lbs.
Our testing is incredibly comprehensive to ensure your wheels will give you years of trouble free use.
Spokes and nipples
We exclusively use Sapim secure lock nipples. Made from the highest quality materials and renowned for their light weight and longevity.
Wheelscience carbon spokes
Available only in the Ethereal 1 wheels our carbon spokes weight less than 3 grams each (1/2 that of a pillar spoke) yet are even stronger!
Pillar 1423 spokes
Our Elemental and Vortex wheels use Pillar 1423 spokes. They are J pull for our own rim brake hubs or straight pull for disc brake or DT hubs.
They are made from SANDVIK T302 stainless steel and weight around 6.5 grams (size dependent).
The aero profile offering superior drag reduction shown below:
Considered by many to be the best aero spokes available, while also taking into account their weight - around only 4.25 grams! Available as J bend or straight pull subject to hub selection.
We use DT Swiss' workhorse Champion spokes in our mountain bike wheels. The DT cold forging process and precision production processes give outstanding long term reliability and performance in the off road world.
It goes without saying that hubs are the heart of any wheel. So at Wheelscience we have taken steps to ensure ours are not only cost effective but also easy to service and extremely long lasting.
Ethereal 1 hubs
An all carbon shell and brand new rachet internals mean our Ethereal hubs give unmatched weight and rigidity to our flagship wheels.
Elemental ceramic hubs (rim brake)
Used in both our Elemental and Everest series wheels our hubs are CNC machined aluminium with TPI ceramic bearings. The front hub weighs just 80 grams and the rear only 210 grams, yet due to the geometry they allow us to build a very stiff and responsive wheel.
Bearing sizes are as follows:
Front hub: 2x699 (9x20x6mm)
Rear hub: 3x6802 (15x24x5mm) and 1x6902(15x28x7mm)

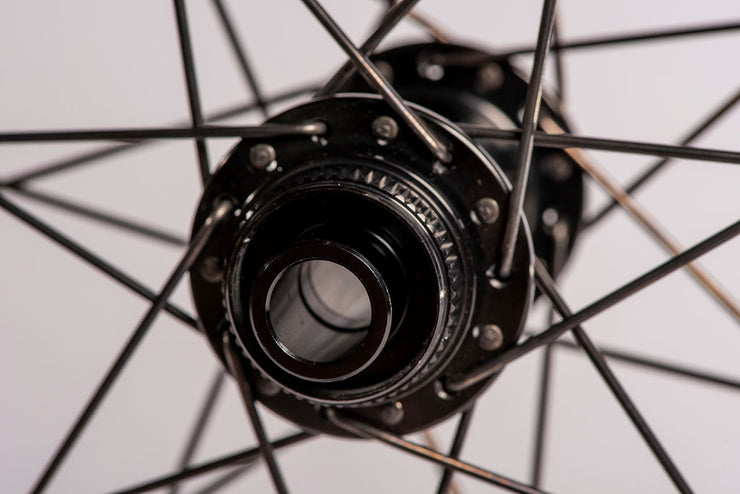

Wheelscience disc brake hubs
When we looked at launching our disc brake hubs we assessed what was already available to us and selected the highly regarded Novatec D411SB/D412SB hubs to build into our wheels. With excellent reliability and reduced weight (front 85 grams, rear 232 grams - 12mm centrelock version) we have been very pleased with that choice. With regards to price, reliability and serviceability these are an excellent choice.
Bearing sizes are as follows:
Front hub: 2 X 6803 (26mm x 17mm x 5mm)
Rear hub: 4 X 6209 (15267) (15mm x 26mm x 7mm)
DT Swiss hubs
Due to popular demand we offer DT Swiss 350, 240 and the amazing 180 hubs on our Everest and Elemental ranges. All with the new EXP ratchet system.
For up to date information on these hubs please see the DT SWISS WEBSITE
In 1991 Steve Hed patented the toroidal wheel shape. Ever since then it has been (and is still) considered the pinnacle of spoked wheel aerodynamics. The patent is no longer active and all shape-related innovations since that time have built upon that discovery.
This is why we know we have industry-best technology built into our rims.
The toroidal profile used in the Elemental series and the Everest series provide outstanding aero performance and stability in cross winds.
For the more budget-conscious, or for those of you taking your first step into the carbon wheel world we offer the Vortex series. These wheels use the classic V shaped profile, still favored by Lightweight wheels in Germany, makers of some of the world's most highly regarded wheels.
You can read all about our time savings and performance testing on THIS PAGE. We believe our wheels offer as good aerodynamic performance as any other wheels available on the market.
All our wheels come with a limited lifetime warranty against manufacturing faults. You will not buy a wheel from us that is not 100% perfect.
Having a lifetime warranty is a pretty big deal both for you as a customer and for us as a manufacturer. So let's break it down in detail, so you understand exactly what we mean.
Your rim will arrive in perfect condition, and other than wear and tear will remain in perfect condition for the entire time you own your wheels (see note below on brake surface).
Spokes and nipples
We supply spare spokes and nipples in case they are required.
You will not experience a heat related failure* as long as you either use our brake pads. They are available here or you can select extra sets with your purchase, which is what we recommend as that option is cheaper.
You MUST install your brake pads at least 2mm below the top of the rim to ensure good braking and longevity of the surface.
Please do not use stock "carbon pads" from your bike shop.
*This is valid to 20,000 kms or two years. Note, your brake surface will wear out over time and should be inspected for signs of wear or grit-related damage.
Your hub shell will never fail due to a manufacturing related problem.
Your bearings are sealed and will be maintenance-free for 2 years under normal circumstances. Heavy off-road usage, combined with excessive use of degreaser may impact this. Please do not use WD40 or similar anywhere near you hub bearings.
The bottom line is, we want you to have a trouble-free experience with our wheels and will take care of anything that we are responsible for. We are not responsible for normal wear and tear.
SHIPPING YOUR BIKE WHEELS IS EASY - AND IT'S FREE!
We ship almost everywhere in the world.
******UPDATE - Until further notice we are now shipping all wheels by premium courier services at no extra cost. We will use either UPS, DHL or FedEx depending upon who has the best service on any given day.******
Stock wheels will usually ship with 24 hours of order.
Built to order wheels ship within 10-12 working days of your order being placed. 12-14 working days for full carbon disc wheels.
We will keep you up to date when they are dispatched and provide you with a tracking number if available.
Countries we have shipped to.
Since we launched in 2014 we have shipped thousands of wheels all around the world. Here is a list of the countries we have delivered to so far.
Australia, Bahrain, Belgium, Canada, Chile, China (mainland and Taiwan), Denmark, Finland, France, Germany, Greece, Hong Kong, Hungary, Ireland, Israel, Italy, Japan, Latvia, Netherlands, New Zealand, Oman, Philippines, Portugal, Singapore, South Africa, Spain, Sweden, Switzerland, Turkey, UAE, UK, USA, Vietnam.
Our most popular destinations are below.
Free delivery by Auspost or premium delivery by FedEX to your door. You pay GST via your payment to us, nothing for you to do. We do all the paperwork in the background. EASY!
Free delivery to you directly by USPS or premium delivery by FedEX. Currently no Import duty is payable. No Sales Tax is payable.
Free delivery to you by Canada post or premium delivery by FedEX. Tax is GST @5% but we hardly ever hear that is actually applied but we refund it if it is.
Free delivery to you by Emirates post or premium delivery by FedEX. Official import tax is 5% but we hardly ever hear that is actually applied but we refund it if it is.
Free delivery to you by Singapore post or premium delivery by FedEX. Tax is GST @7% but we hardly ever hear that is actually applied but we refund it if it is.
|Europe (Inc UK)||
Your parcel will be delivered by your local postal service or UPS with no more to pay. We use a freight forwarder, so no VAT or duty is payable.
Premium delivery by FedEX where we refund you the duty payable when the wheels arrive.
