Brake Blocks

Regular price $ 60.00 USD Save $ -60.00 USD
-4 in stock

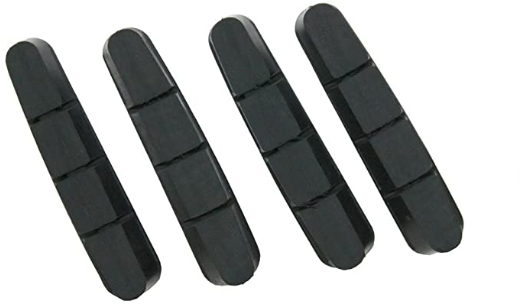

Set of 4 brake blocks.

Our ceramic fibre brake blocks are designed to work with our ceramic fibre brake surface inlays to give maximum stopping power in both wet and dry conditions.

Note, due to the very high heat tolerance of our rims please use these instead of any other polymer-based brake blocks.  Using another block will not by definition void your warranty but they might damage your wheels.



At Wheelscience we use best of breed technology to delivery you outstanding performance. No compromise, ever.

Aerodynamics

In 1991 Steve Hed patented the toroidal wheel shape.  Ever since then it has been (and is still) considered the pinnacle of spoked wheel aerodynamics.  The patent is no longer active and all shape-related innovations since that time have built upon that discovery.

This is why we know we have industry-best technology built into our rims.

The toroidal profile used in the Elemental series and the Everest series provide outstanding aero performance and stability in cross winds.

Elemental profile

Everest profile

For the more budget-conscious, or for those of you taking your first step into the carbon wheel world we offer the Vortex series.  These wheels use the classic V shaped profile, still favored by Lightweight wheels in Germany, makers of some of the world's most highly regarded wheels.

Time savings

You can read all about our time savings and performance testing on THIS PAGE.  We believe our wheels offer as good aerodynamic performance as any other wheels available on the market.

Materials

We only us Torayca carbon fibre.  Toray Industries of Japan is without question the global leader in carbon materials.  We use two types of their fibre.

T700 carbon fibre from TORAYCA® is considered the gold standard in industrial fibre.  While more recent advances in carbon have led to the development of T800 and T1000 fibres, both of these are actually too rigid to be used alone.  Our Everest rims use a blend of T700 and T800, while the Elemental and Vortex rims are 100% T700.

Rim configurations

Our Elemental and Everest wheels are available as Clincher, Tubeless-ready clincher and Tubular.  For tire pressure recommendations please see our FAQ page.

Interesting rim facts

We conduct various tests on our rims as you would expect.  Some of the more interesting outcomes are the following:

Our spoke holes are tested to over 350 kilogram force (over 800lbs).  This means we use a mechanical set up to apply that much pull force to a spoke set up in a rim section.  That is 200-300% of the load they will be exposed to in day-to-day use.

We crush test our rims (unspoked) to 600kgs without failure, that is almost 1500lbs.

Our testing is incredibly comprehensive to ensure your wheels will give you years of trouble free use.

Spokes and nipples

We exclusively use Sapim secure lock nipples.  Made from the highest quality materials and renowned for their light weight and longevity.

Pillar 1423 spokes

Our Elemental and Vortex wheels use Pillar 1423 spokes.  They are J pull for our own rim brake hubs or straight pull for disc brake or DT hubs.

They are made from SANDVIK T302 stainless steel and weight around 6.5 grams (size dependent).

The aero profile offering superior drag reduction shown below:



Sapim CX-ray

Considered by many to be the best aero spokes available, while also taking into account their weight - around only 4.25 grams!  Available as J bend or straight pull subject to hub selection.





Hubs

It goes without saying that hubs are the heart of any wheel.  So at Wheelscience we have taken steps to ensure ours are not only cost effective but also easy to service and extremely long lasting.

Elemental ceramic hubs (rim brake)

Used in both our Elemental and Everest series wheels our hubs are CNC machined aluminium with TPI ceramic bearings. The front hub weighs just 80 grams and the rear only 210 grams, yet due to the geometry they allow us to build a very stiff and responsive wheel.

Bearing sizes are as follows:

Front hub: 2x699 (9x20x6mm)
Rear hub: 3x6802 (15x24x5mm) and 1x6902(15x28x7mm)

Wheelscience disc brake hubs

When we looked at launching our disc brake hubs we assessed what was already available to us and selected the highly regarded Novatec D411SB/D412SB hubs to build into our wheels.  With excellent reliability and reduced weight (front 85 grams, rear 232 grams - 12mm centrelock version) we have been very pleased with that choice.  With regards to price, reliability and serviceability these are an excellent choice.

Bearing sizes are as follows:

Front hub: 6803 (26mm x 17mm x 5mm)
Rear hub: 15267 (15mm x 26mm x 7mm)



DT Swiss hubs

Due to popular demand we offer DT Swiss 350, 240 and the amazing 180 hubs on our Everest and Elemental ranges.  All with the new EXP ratchet system.

For up to date information on these hubs please see the DT SWISS WEBSITE











All our wheels come with a limited lifetime warranty against manufacturing faults.  You will not buy a wheel from us that is not 100% perfect.

Having a lifetime warranty is a pretty big deal both for you as a customer and for us as a manufacturer.  So let's break it down in detail, so you understand exactly what we mean.

Rim

Your rim will arrive in perfect condition, and other than wear and tear will remain in perfect condition for the entire time you own your wheels (see note below on brake surface).

Spokes and nipples

We supply spare spokes and nipples in case they are required.

Brake surface

You will not experience a heat related failure* as long as you either use our brake pads.  They are available here or you can select extra sets with your purchase, which is what we recommend as that option is cheaper.

You MUST install your brake pads at least 2mm below the top of the rim to ensure good braking and longevity of the surface.

Please do not use stock "carbon pads" from your bike shop.

*This is valid to 20,000 kms or two years.  Note, your brake surface will wear out over time and should be inspected for signs of wear or grit-related damage.

Hub shell

Your hub shell will never fail due to a manufacturing related problem.

Hub bearings

Your bearings are sealed and will be maintenance-free for 2 years under normal circumstances.  Heavy off-road usage, combined with excessive use of degreaser may impact this.  Please do not use WD40 or similar anywhere near you hub bearings.



The bottom line is, we want you to have a trouble-free experience with our wheels and will take care of anything that we are responsible for.  We are not responsible for normal wear and tear.



SHIPPING YOUR BIKE WHEELS IS EASY - AND IT'S FREE!

We ship everywhere in the world.  Some countries have import requirements and taxes, we will help you understand the entire process.

 COVID UPDATE - We are still operating at full speed in production!  We are seeing some delays with delivery times using our economy shipping - if you are able to chose the premium option then that will speed things up from a delivery point of view.  Average total delivery times are currently 3-4 weeks with premium shipping or 5 weeks with economy.

 Country

Process

Australia

Free delivery by Auspost or premium delivery by FedEX to your door. You pay GST via your payment to us, nothing for you to do.  We do all the paperwork in the background.  EASY!



USA

Free delivery to you directly by USPS or premium delivery by FedEX.  Currently no Import duty is payable.  No Sales Tax is payable.



Canada

Free delivery to you by Canada post or premium delivery by FedEX.  Tax is GST @5% but we hardly ever hear that is actually applied but we refund it if it is.



UAE

Free delivery to you by Emirates post or premium delivery by FedEX.  Official import tax is 5% but we hardly ever hear that is actually applied but we refund it if it is.



Singapore

Free delivery to you by Singapore post or premium delivery by FedEX.  Tax is GST @7% but we hardly ever hear that is actually applied but we refund it if it is.



Europe (Inc UK)

Your parcel will be delivered by your local postal service or UPS with no more to pay. We use a freight forwarder, so no VAT or duty is payable.

Premium delivery by FedEX where we refund you the duty payable when the wheels arrive.

Rest of World Contact us and we will find out!



Shipping Times

All our wheels are built to order and we aim to ship within 10 working days of your order being placed. 12 working days for TT wheels.  We will keep you up to date when they are dispatched and provide you with a tracking number if available

Premium Shipping.

Free shipping uses the Global EMS network of postal services and is 100% reliable but transit times can be a week or more and tracking information may be delayed. Premium shipping has typical transit times of 3 days and is fully tracked.

Returns

You must inspect your wheels carefully BEFORE you sign for them if they are to be returned at no cost due to being damaged in transit.
